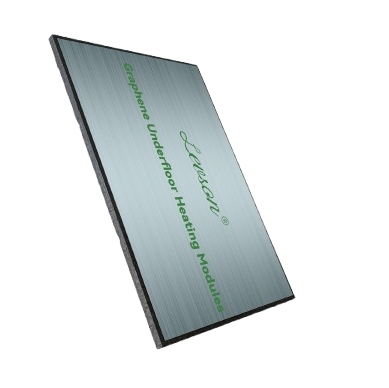

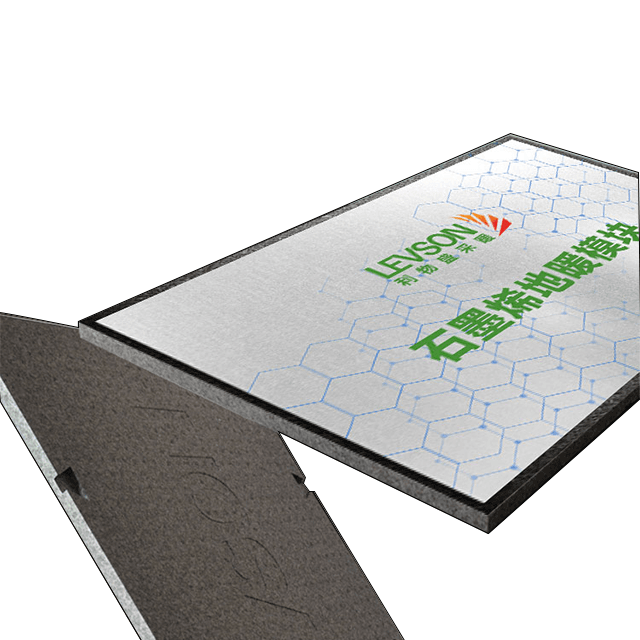

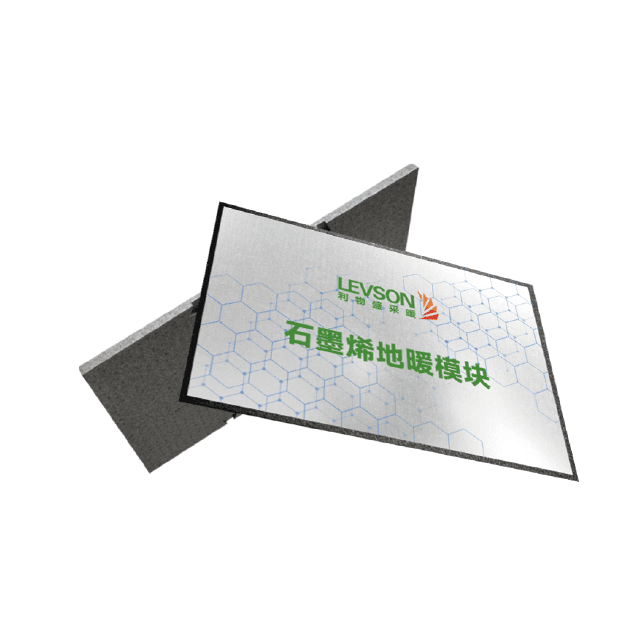

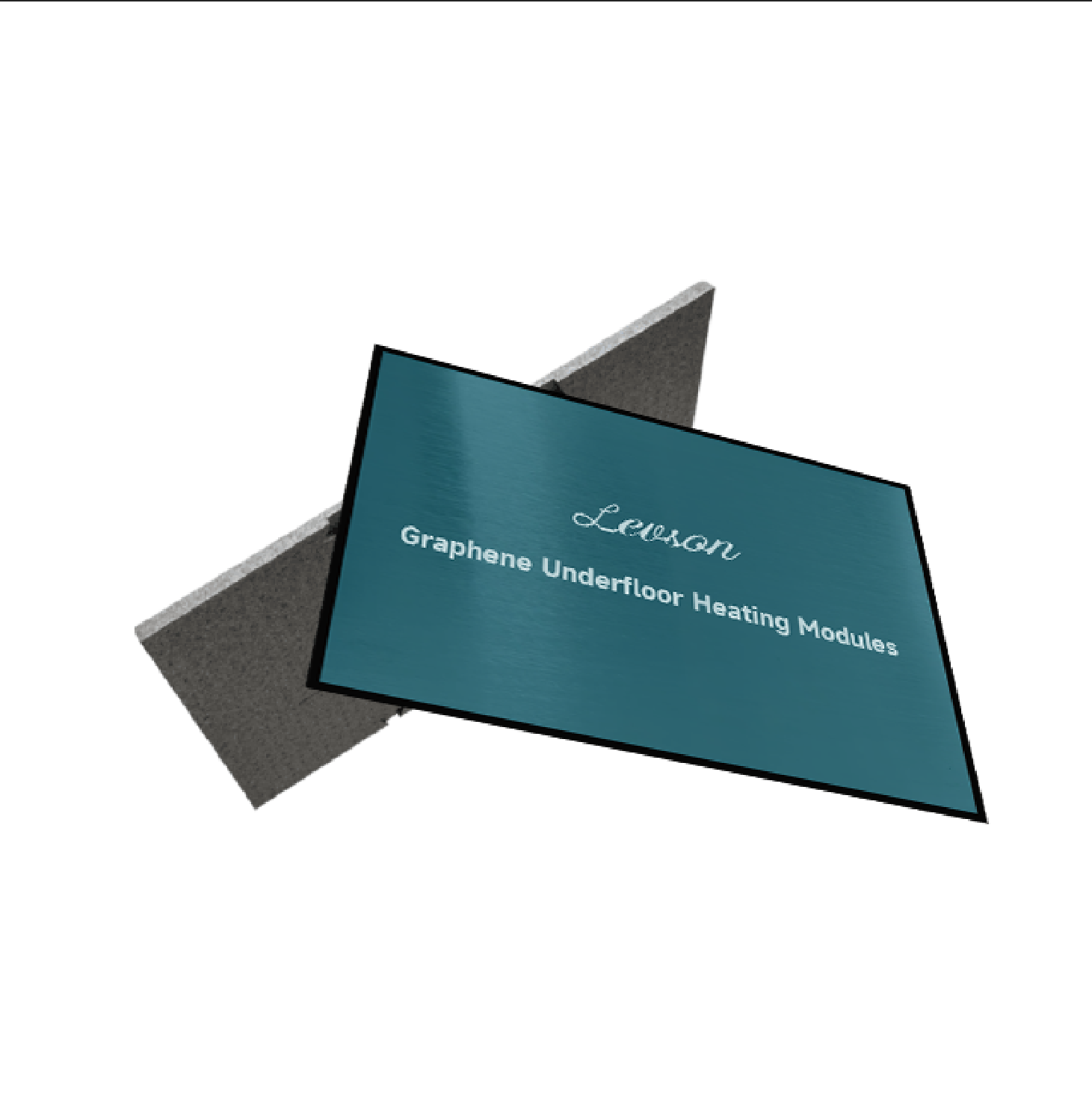

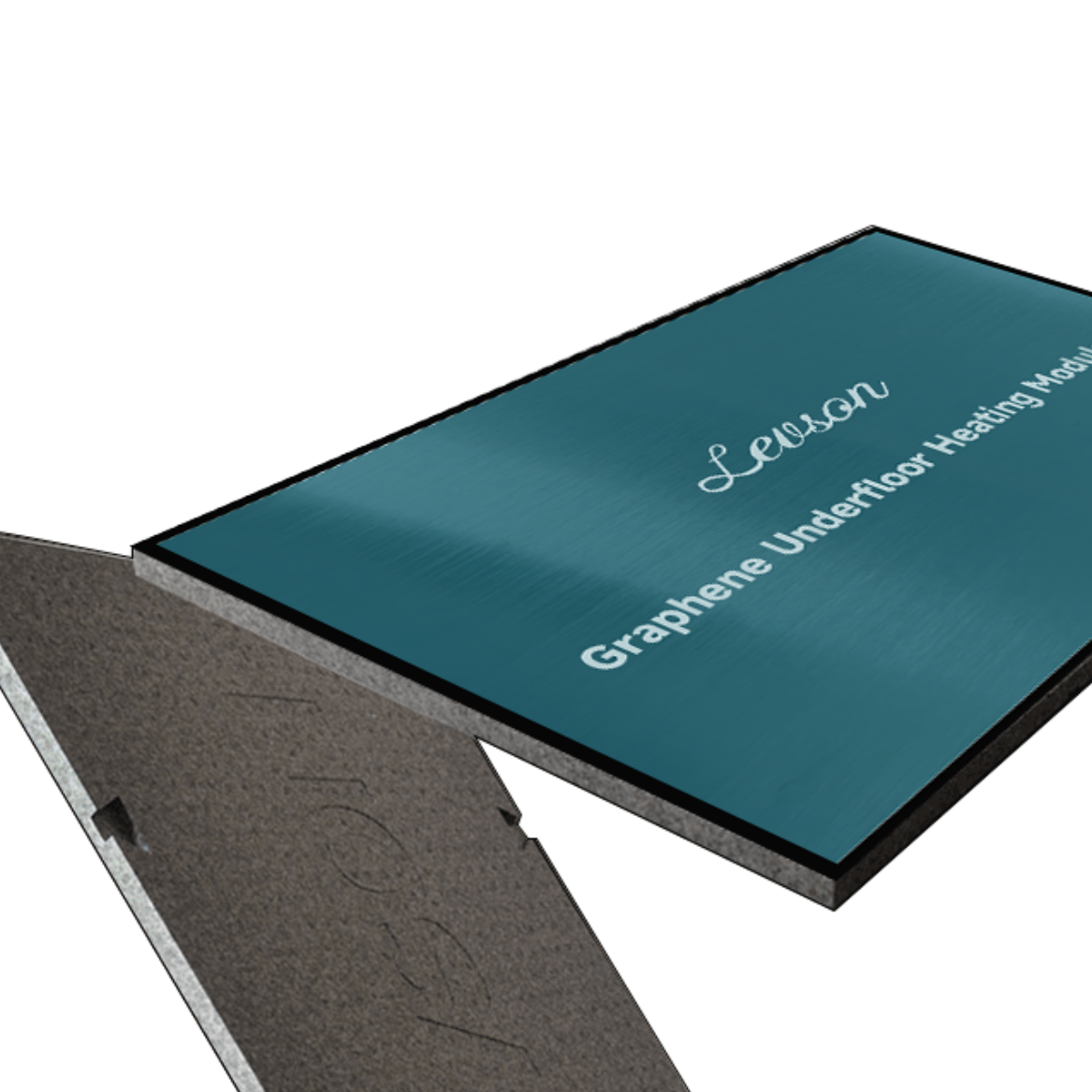

LEVSON Graphene Far-Infrared Floor Heating Module
Technical Specifications
| Feature | Details |
| Brand | LEVSON |
| Dimensions | 560mm*830mm* 215mm |
| Voltage | 230V (Standard) / 120V (Optional) |
| Power Output | 90W per module |
| Heating Method | Far-infrared thermal radiation |
| Waterproof Level | IPX6 |
| Safety Tests | Dielectric Strength 1000V/min; Leakage Current < 0.5mA |
| Insulation | 50MΩ |
| Control | Intelligent Remote Control Supported |
System Components
| 1. Thermostat：Model: TMS816 | |||||||||||||||||||||
| Voltage range: | 95~240VAC | Maximum load power: | 3000W | ||||||||||||||||||
| Rated current: | 16 A (resistive load) | Standby power consumption: | ≤1.5W | ||||||||||||||||||
| Temperature setting range: | 5~85°C | Temperature measurement range: | 0~90°C | ||||||||||||||||||
| Measurement accuracy: | ±0.5°C | Temperature control tolerance: | 2°C | ||||||||||||||||||
| 2. Connection Cables (Optional) | |||||||||||||||||||||
| Name | Model | Name | Model | ||||||||||||||||||
| 1-to-2 Cable | W15T2-5 | 1-to-5 Cable | W25T5-5 | ||||||||||||||||||
| 1-to-3 Cable | W25T3-5 | 1-to-6 Cable | W25T6-5 | ||||||||||||||||||
| 1-to-4 Cable | W25T4-5 | ||||||||||||||||||||
Why Choose LEVSON Underfloor Heating System?
1. Authentic Material Science Unlike many competitors, we use industrial-grade graphene. This ensures the longest lifespan and the highest conversion rate of electricity to heat.
2. Revolutionary Energy Efficiency Our modules save up to 60% on electricity bills compared to traditional heating cables, making it the most sustainable choice for modern homes and offices.
3. Health-Focused Heating By utilizing Far-Infrared (FIR) radiation, our system heats objects and bodies directly—similar to sunlight—without drying out the air or circulating dust.
4. Certified Global Standards We provide peace of mind with a comprehensive portfolio of certifications:
North America: UL 499 / CSA C22.2 No. 46
Europe: CE, TUV, RoHS
Intellectual Property: 15 Proprietary Invention Patents
5. Professional Partnership We welcome distributors, agents, and construction firms. With Factory Direct Wholesale, we ensure the most competitive pricing and robust OEM/ODM support to help you grow your brand.
